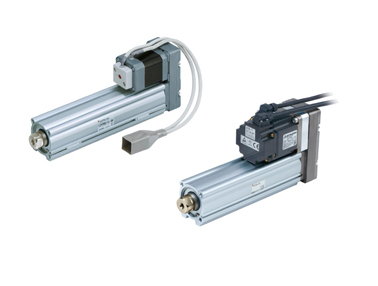

Electric Actuator / Rod Type LEY

Series LEY Step Motor (Servo/24 VDC) Servo Motor (24 VDC)

  • Long stroke: Max. 500 mm
  • Direct mounting: 3 directions, Bracket mounting: 3 types
  • Auto switch can be mounted.
  • Speed control/Positioning: Max. 64 points
  • Either positioning or pushing control can be selected.
    Possible to hold the actuator with the rod pushing to a workpiece, etc.
  • Positioning repeatability: ±0.02 mm or less
  • Dust/Drip proof (IP65) specification
  • Compatible controllers: LECP6，LECA6，LECP1，LECPA，LECPMJ

Series LEY Step Motor (Servo/24 VDC) Servo Motor (24 VDC)

  • High output motor (100/200/400 W)
  • Improved high speed transfer ability
  • High acceleration compatible (5,000 mm/S2)
  • Pulse input type
  • With internal absolute encoder
  • Positioning repeatability: ±0.02 mm or less
  • Dust/Drip proof (IP65) specification
  • Compatible drivers: LECSA，LECSB，LECSC，LECSS
  • Motorless specification available Click here for details
Related Downloads
Product Catalog
2D CAD File
3D CAD File
Manual
DoC
Spec. Model Stroke
(mm)		 Pushing force
(N)		 Speed
(mm/s)		 Screw lead
(mm)
Step motor
(Servo/24 VDC) 		LEY16□ 30 to 300 MAX.141 MAX.500 2.5，5，10
Step motor
(Servo/24 VDC) 		LEY25□ 30 to 400 MAX.452 MAX.500 3，6，12
Step motor
(Servo/24 VDC) 		LEY32□ 30 to 500 MAX.707 MAX.500 4，8，16
Step motor
(Servo/24 VDC) 		LEY40□ 30 to 500 MAX.1058 MAX.300 4，8，16
Servo motor
(24 VDC) 		LEY16□A 50 to 300 MAX.111 MAX.500 2.5，5，10
Servo motor
(24 VDC) 		LEY25□A 50 to 400 MAX.130 MAX.500 3，6，12
AC servo motor LEY25□S 30 to 400 MAX.485 MAX.900 3，6，12
AC servo motor LEY32□S 30 to 500 MAX.588 MAX.1200 5，10，20
AC servo motor LEY63□S 100 to 800 MAX.1910 MAX.1000 5，10，20
