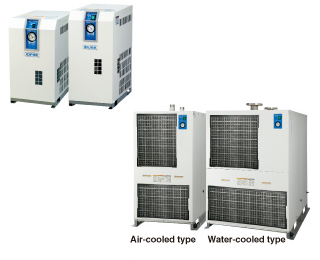

Refrigerated Air Dryer IDF E/F/D

Description

No description

Related Downloads
Product Catalog
2D CAD File
3D CAD File
Manual
Series Rated inlet condition Air flow capacity (m3/h [ANR] )
50Hz		 Air flow capacity (m3/h [ANR] )
60Hz		 Applicable air compressor (kW) Refrigerant Port size
IDF1E 35℃
0.7MPa 		0.1 0.12 0.75 R134a
（HFC） 		Rc3/8
IDF2E 35℃
0.7MPa 		0.2 0.235 1.5 R134a
（HFC） 		Rc3/8
IDF3E 35℃
0.7MPa 		0.32 0.37 2.2 R134a
（HFC） 		Rc3/8
IDF4E 35℃
0.7MPa 		0.52 0.57 3.7 R134a
（HFC） 		Rc1/2
IDF6E 35℃
0.7MPa 		0.75 0.82 5.5 R134a
（HFC） 		Rc3/4
IDF8E 35℃
0.7MPa 		1.22 1.32 7.5 R134a
（HFC） 		Rc3/4
IDF11E 35℃
0.7MPa 		1.65 1.82 11 R134a
（HFC） 		Rc3/4
IDF15E1 35℃
0.7MPa 		2.8 3.1 15 R134a
（HFC） 		Rc1
IDF22E 35℃
0.7MPa 		3.9 4.3 22 R407C
（HFC） 		R1
IDF37E 35℃
0.7MPa 		5.7 6.1 37 R407C
（HFC） 		R1 1/2
IDF55E 40℃
0.7MPa 		8.4 9.8 55 R407C
（HFC） 		R2
IDF75E 40℃
0.7MPa 		11.0 12.4 75 R407C
（HFC） 		R2
IDF100F 40℃
0.7MPa 		16.0 18.8 100 R407C
（HFC） 		R2
IDF125F 40℃
0.7MPa 		20.1 23.7 125 R407C
（HFC） 		65（2 1/2B）
flange
IDF150F 40℃
0.7MPa 		25.0 30.0 150 R407C
（HFC） 		80（3B）
flange
IDF190D 40℃
0.7MPa 		32.0 38.0 190 R407C
（HFC） 		80（3B）
flange
IDF240D 40℃
0.7MPa 		43.0 50.0 240 R407C
（HFC） 		100（4B）
flange
IDF370D 35℃
0.7MPa 		54.0 65.0 370 R407C
（HFC） 		150（6B）
flange
